Start With the Simple Checks
An aircon not turning on usually points to a minor issue you can resolve quickly. This common frustration is easy to troubleshoot before calling our aircon repair team.
We have seen hundreds of units across the Klang Valley bounce back after a basic reset. High humidity and 33°C afternoons make a dead AC feel like an emergency.
You can safely perform these initial tests yourself.
1. The remote
Dead batteries remain the leading reason your unit ignores commands. Brands like Daikin and Panasonic often stop responding completely if the battery voltage drops below 1.2V. We recommend swapping in a fresh pair of AAAs immediately.

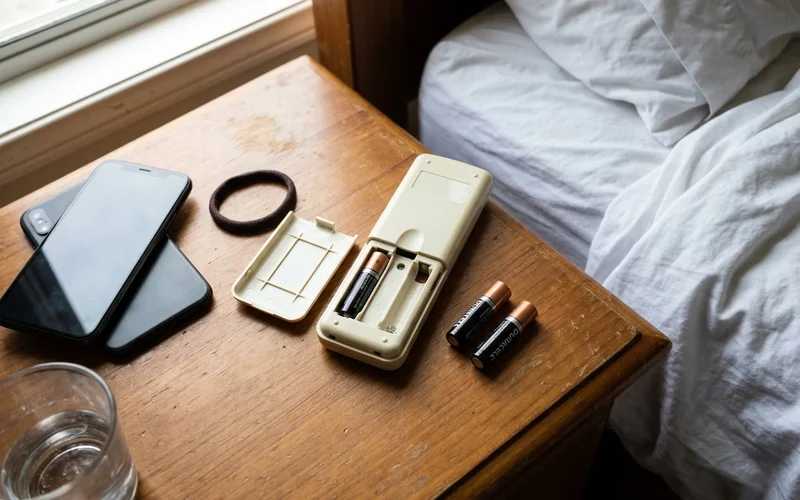

- Replace the batteries. A fresh set solves the problem 80% of the time.
- Check the signal path. Point the remote directly at the indoor unit from two to three metres away. Dust or shelf decorations can block the infrared receiver.
- Inspect the digital display. A blank screen means the batteries are dead. A child lock symbol requires a specific button combination to unlock (check your specific model manual).
Many indoor units feature a hidden manual override button. You will usually find this emergency switch under the main plastic front panel, often on the right side. Pressing it once activates the cooling mode at a default 24°C setting.
Our technicians always try this first to confirm the main board is functional.
2. The wall switch or isolator
Check the dedicated 20A double-pole wall switch mounted near your indoor unit. Cleaners or family members often flip this isolator off by accident.
We find this simple oversight causes about 15% of the “dead AC” calls we receive. Simply flicking it back on restores power instantly.
3. The breaker
Your distribution board (DB box) contains individual breakers for heavy appliances. A tripped Miniature Circuit Breaker (MCB) will rest in the middle or fully down position.
We suggest locating the specific 20A breaker labelled for your AC. Push it firmly to the ‘off’ position first, then snap it back to ‘on’ just one time.
4. The timer
Accidental timer settings will prevent the system from starting manually. Look for a small clock icon on the remote display or an orange blinking light on the indoor unit.
We often guide customers to clear this by pressing the ‘Cancel’ button on their remote.
Your system should run normally now if one of these basic fixes worked. Keep a close watch on the cooling performance over the next 24 hours.
When the Breaker Keeps Tripping
An aircon trip breaker situation requires immediate attention if the power cuts out again. Resetting a tripped MCB or RCCB multiple times forces electricity through a dangerous fault.
Our electrical specialists strictly advise against this practice. High humidity in Malaysian homes often leads to internal condensation, which can quickly short out sensitive electrical components.
A breaker trips to protect your property from severe electrical hazards. This sudden shut-off points directly to a circuit overload or an earth leakage issue. We typically diagnose one of these five critical failures:
- A direct short circuit hidden within the internal wiring or the main control board.
- A failing compressor pulling excessive amps as it fights to start.
- Moisture invasion reaching electrical terminals, frequently caused by a blocked drain pipe or a poorly executed DIY chemical wash.
- A degraded run capacitor or a seized outdoor fan motor.
- Compromised power cables, which are regularly chewed by roof rats or accidentally sliced during home renovations.
Forcing power back into a faulty circuit causes wires to melt and expensive parts to burn completely out.
This turns a minor repair into a major component replacement.
Safety first
If you notice a burning smell, scorch marks, buzzing or smoke, switch off at the breaker and leave it off. Do not touch the unit’s wiring under any circumstances. Call a qualified technician immediately.
Common Electrical Causes We Find
Matching your specific symptom to a likely cause helps speed up the diagnostic process. This chart covers the most frequent electrical faults property owners experience.
We use these precise indicators to bring the correct replacement parts on the first visit.
| Symptom | Likely cause |
|---|---|
| Completely dead, breaker fine | Dead remote, switched-off wall isolator, blown 3A fuse on the indoor board, or a complete control board failure |
| Trips immediately when switched on | Direct short circuit, water pooling in the electrical box, or a severed power cable |
| Trips a few minutes after starting | Compressor struggling with high head pressure, a bulging run capacitor, or severe overheating |
| Trips during heavy rain | Rainwater bypassing weather seals and entering the outdoor compressor unit or its external wiring |
| Starts, then shuts down with a blinking light | A system protection fault triggering a specific manufacturer error code (like Daikin’s U4 or Panasonic’s H11) |
What a Technician Does
Finding out why an aircon keeps tripping demands specialized diagnostic tools and proper safety training. Complex electrical troubleshooting goes far beyond simply swapping out batteries.
Our certified technicians follow a strict testing protocol to isolate the exact point of failure.

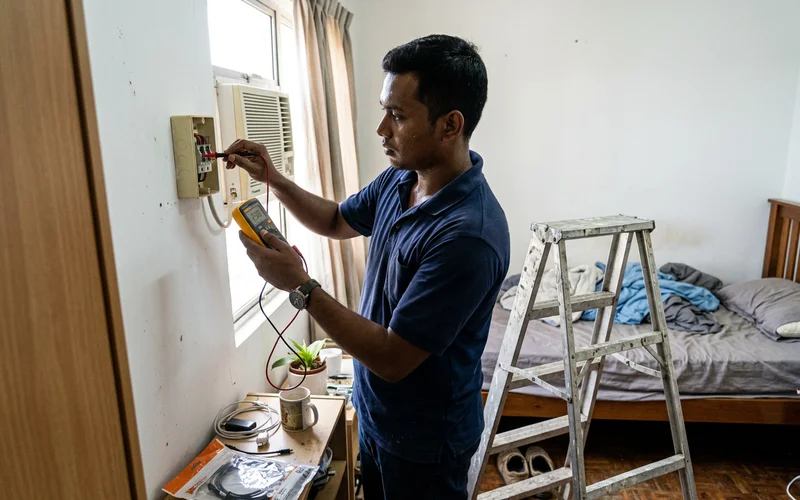

- Check the incoming supply voltage at both the wall isolator and the terminal blocks.
- Test the insulation of power cables and the compressor windings for dangerous earth leakage.
- Verify the microfarad rating of the capacitor, contactor, and fan motors using an industrial Fluke multimeter.
- Measure the exact compressor amp draw with a clamp meter during the initial start-up sequence.
- Inspect the printed circuit board (PCB) for blown fuses or burnt solder joints.
- Search for hidden water damage, corrosion, or pest damage along the copper pipe insulation.
The detailed diagnostic process ensures you only pay to fix the actual broken component. We always explain the exact fault and provide a firm price before proceeding with any work.
Basic repair labour ranges from RM80 to RM200, depending on the complexity of the teardown. Required parts, such as a replacement 35uF capacitor or a new contactor, are quoted separately.
Urgent Help, 24/7
An air conditioner pulling too much power can easily trip the main RCCB, shutting off electricity to your entire home. Enduring the intense Klang Valley heat without cooling is miserable, particularly for infants, the elderly, and those recovering from illness.
We operate a dedicated response team 24/7, covering every single night, weekend, and public holiday.
Dispatchers guarantee a technician will arrive at your door within 24 hours of your request. Reach out via the direct WhatsApp hotline, or contact us online to secure the next available time slot.
Please provide exact details about what happens when you press the power button, and specify if the main breaker drops.
We stand behind every electrical repair by including a mandatory 7-day follow-up check.
